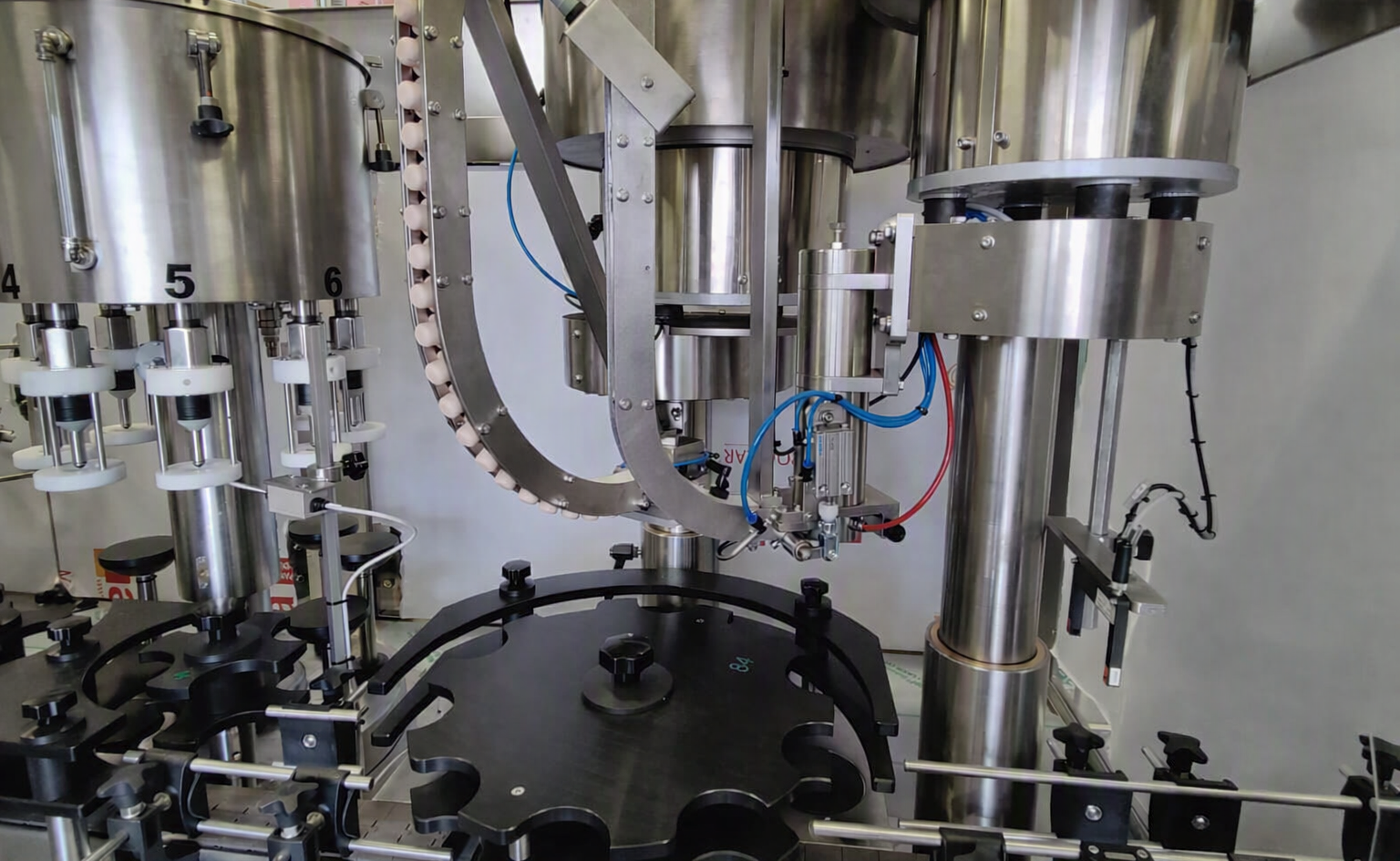

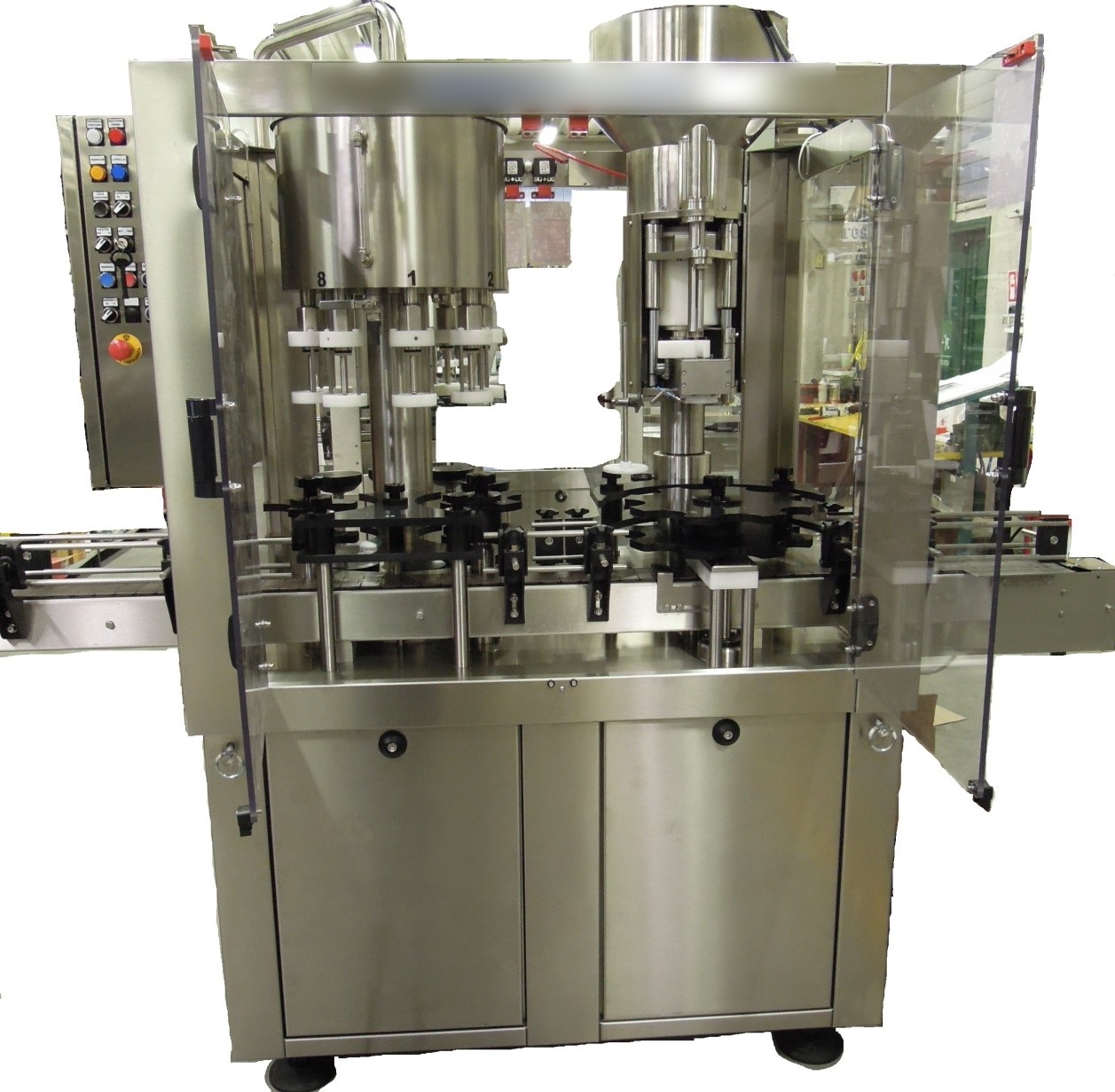

Series of automatic monoblocks composed of a gravity or high vacuum filler with 8 – 12 filling nozzles and one or more capping turrets adaptable to numerous types of closures.
• Filling unit:
Gravity or high vacuum filling system with 8-12 nozzles
Selection and transfer of the bottles by means of a star-wheel
Pneumatic-mechanical lifting of the bottles with plates equipped with a centering system
Stainless steel filling valves with heat-sanitizable gaskets that can be easily dismantled for cleaning and maintenance
Tank adjustable in height for format changeover
Control of the liquid present in the tank using probes and level relays
Product transfer pump socket controlled by the control panel

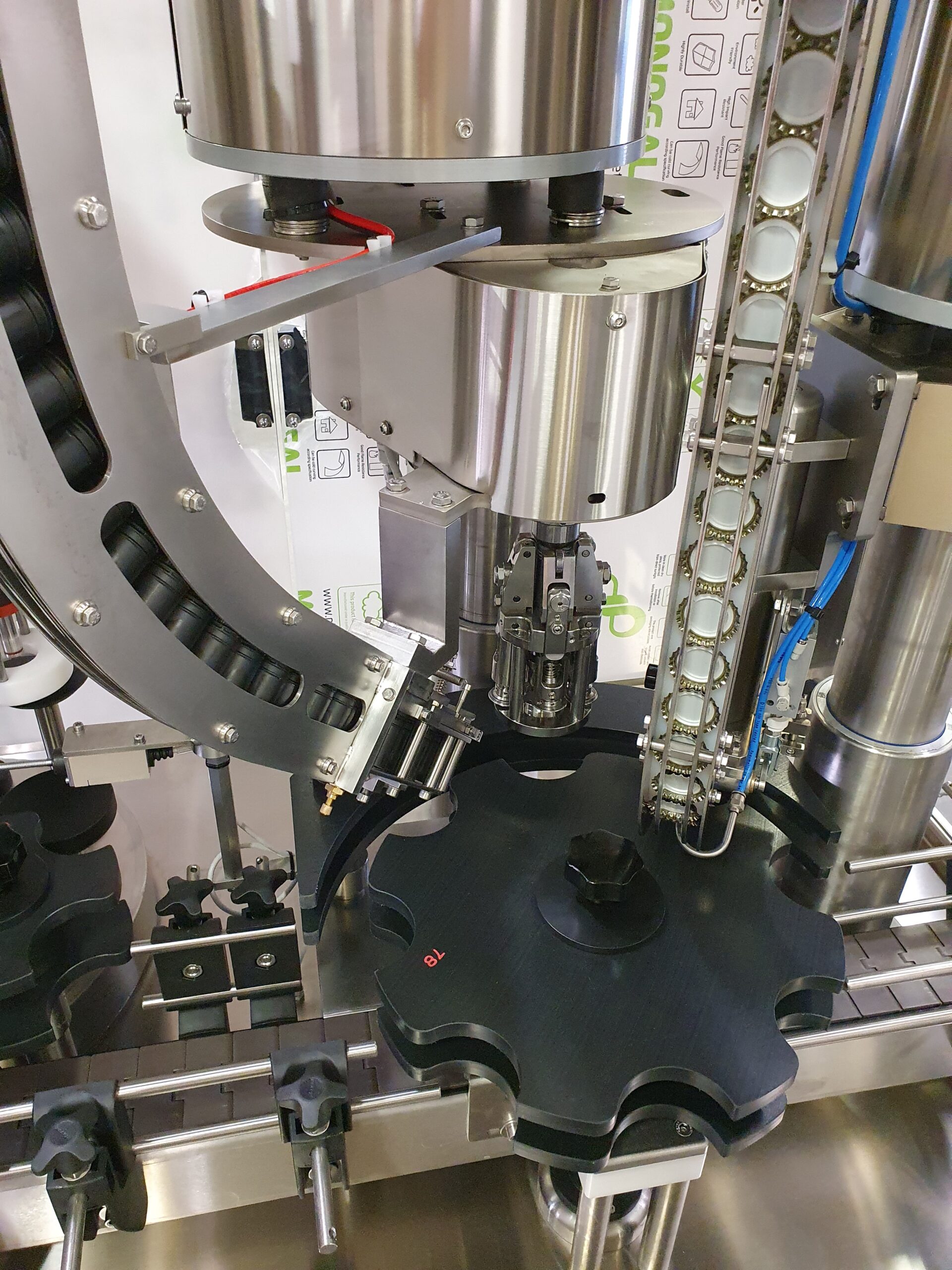

• Capping unit:
Turrets built on solid AISI 304 steel supports

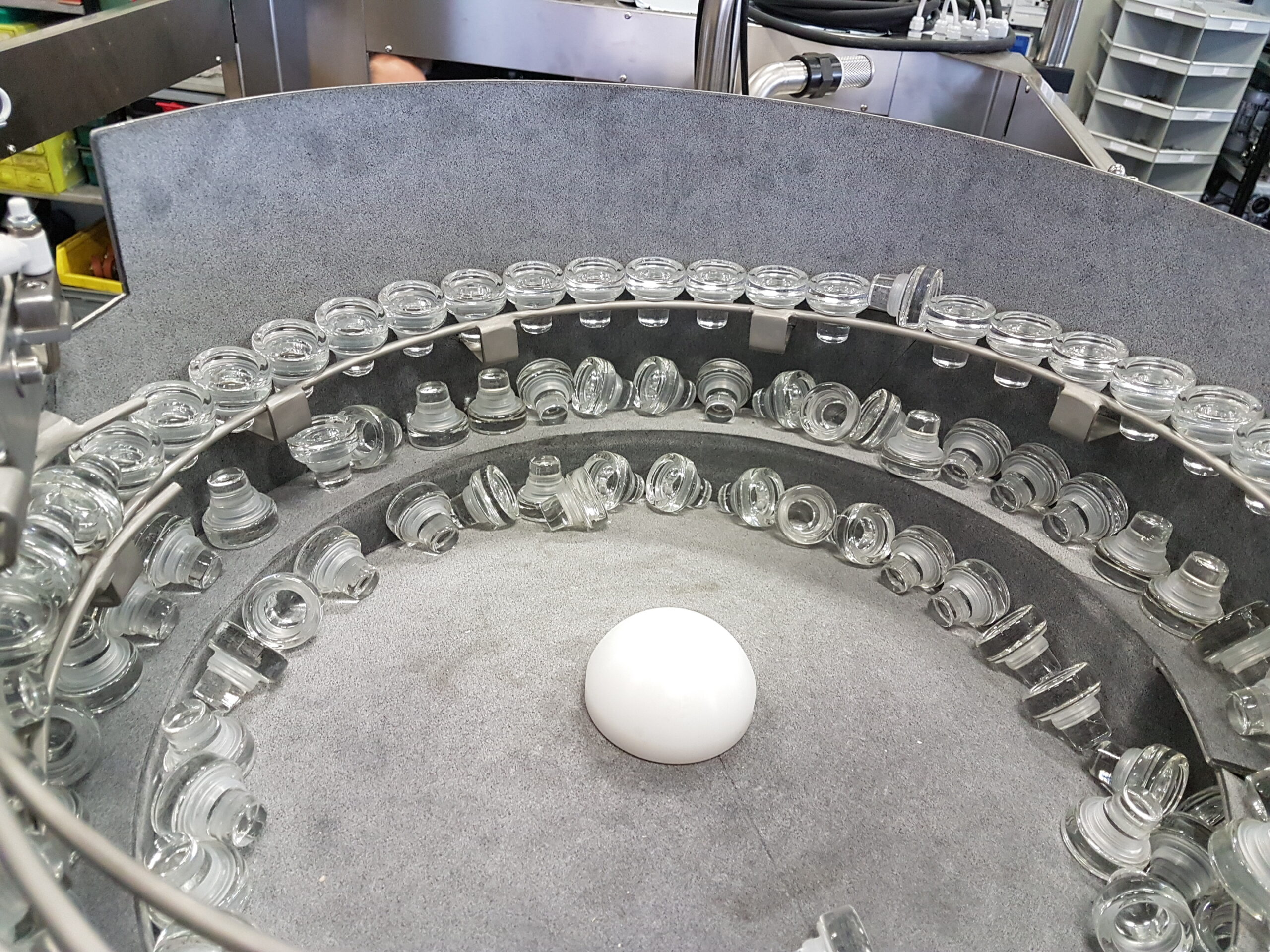

Supplied with caps feed hopper located in the upper part of the turret
Bottle transfer using a 10-pockets starwheel equipped with micro safety and a simple phasing device
Pneumatic-mechanical bottle lifting piston
Capping column adjustable in height by means of a convenient handwheel placed on the back of the column itself
Main features:
– PLC-controlled operation with touch-screen panel
– possibility of equipping the machine with all the main capping turrets (for natural wine corks, crown caps, ‘T corks’, twist-off caps, aluminum screw caps, etc.)
– suitable for filling a wide range of products including water, still wine, oil, vinegar, spirits, liqueurs, fruit juices (even at high temperatures with tank insulation) etc.

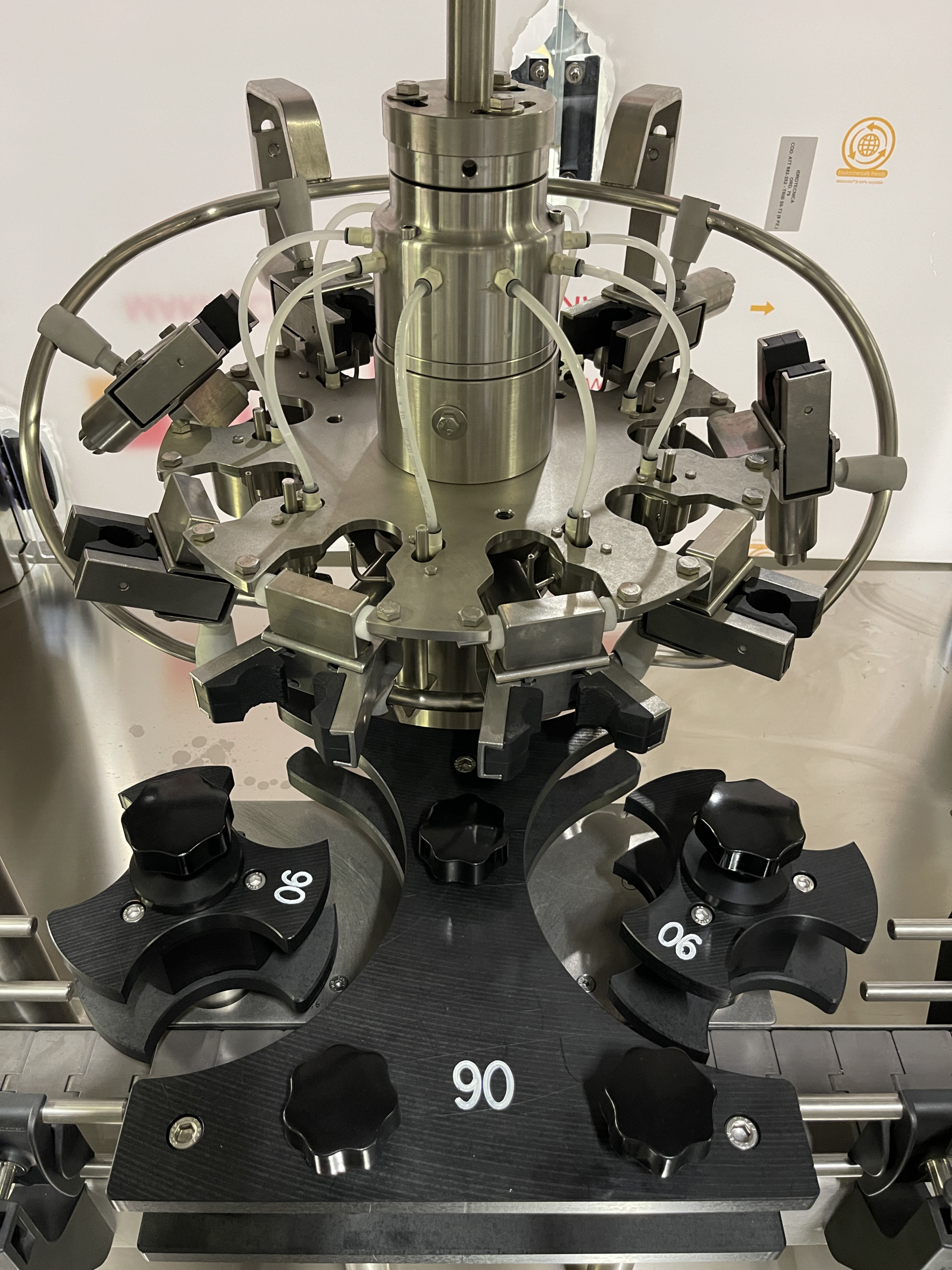

– possibility of adding a rotary rinser on the same baseframe
– machine supplied complete with conveyor belt with stainless steel chain, drive motor and idle wheel for independent operation, fixed accumulation table at outlet
– electrical system installed in accordance with international safety standards with low voltage controls contained in a stainless steel box
– CE standard accident protection with safety microswitches
– adjustable speed up to 1.500 b/h (8-valves versions) or 2.000 b/h (12-valves versions)
Request Information:
Details
| Products that can be filled: | wine, spirits, craft beer, oil, liquors, water, fruit juices |
|---|---|
| Hourly Production: | up to 2.000 bottles |
| Speed variation: | electronic by means of an inverter |
| Container type: | glass bottles |
| Standard voltage: | 400V – 3F – 50hz |
| Power consumption: | approx. 3 kW |
| Compressed air: | 5-6 bar |
| Dimensions and weight: | variable based on the model |
